Description

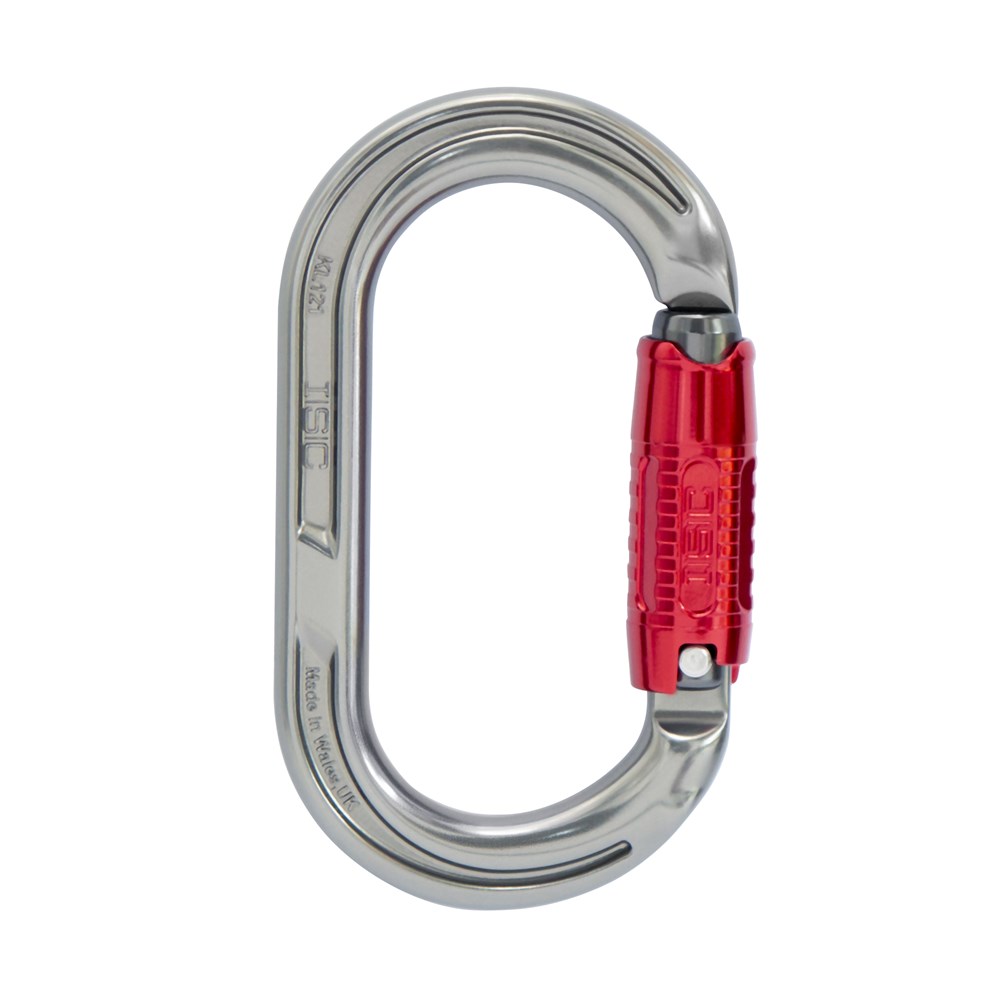

The KL121 Oval is a standard size oval carabiner with an effective working length of 85mm (3.4”). Many industrial Oval carabiners have an offset shape, in order to bias (offset) the load towards the spine (the strongest part of the carabiner), to achieve additional major axis strength.
Details
The KL121 Oval is a standard size oval carabiner with an effective working length of 85mm (3.4”). Many industrial Oval carabiners have an offset shape, in order to bias (offset) the load towards the spine (the strongest part of the carabiner), to achieve additional major axis strength. The KL121 however is ideal when load centralisation, correct orientation and optimal loading are the top priorities, to enable balance in a system.
The KL121 is the first ISC carabiner that is available with the option of a screw-in/screw-out captive pin. The screw-in captive pin can easily be installed/removed as required, using a standard 2mm Alen/Hex Key, making it quick and easy to swap lanyards etc., as and when they need to be replaced.
The KL121 carabiner can also be supplied with an RFID pocket, on request. The RFID Pocket, located within the carabiner gate, enables users to retro-fit of an RFID Tag. RFID tags are not fitted as standard, but can be fitted on request.
Technical Information
(MBS) Minimum Breaking Strength (kN) 25 (MBS) Minimum Breaking Strength (lbf) 5620 Gate opening gap (mm) 22 Gate opening gap (inches) 0.86 Nose type Keylock nose Captive pin Available on request Serial numbering As standard EZYiD Available on request Weight (grams) 72 Weight (ounces) 2.5
Approved Standards
EN362:2004 B, T EN12275:2013 B, X, T- Manufacturer Part Number:
- KL121SS1
- Country of Manufacture:
- GB
