GRCS Good Rigging Control System

The GRCS Good Rigging Control System is a cutting-edge tool designed for safely and efficiently lowering heavy loads. Created by Greg Good, this system offers two distinct settings to provide either a 44:1 or a 22:1 mechanical advantage, catering to a variety of rigging needs.

▼ More Info...

.

£3,199.99 Ex VAT

£3,839.99 Inc VAT

Stock: Available

1 in stock

Quantity:
SKU:   WINC-GRCS-0017
MPN: GR1000C
Compare
Add to Wish List

Description

The GRCS Good Rigging Control System is a cutting-edge tool designed for safely and efficiently lowering heavy loads. Created by Greg Good, this system offers two distinct settings to provide either a 44:1 or a 22:1 mechanical advantage, catering to a variety of rigging needs. Additionally, the GRCS features two specialized spools, one for controlled lowering and another for powerful lifting capabilities, making it a versatile solution for various tasks.

With a remarkable dead lift rating of 3,000 lbs, the GRCS Good Rigging Control System is capable of handling substantial loads such as large timber sections with ease. Its high working load limit ensures reliability and safety during operations, while its impressive pulling power allows for the quick and efficient lifting of heavy loads. Whether you are a professional tree crew looking to enhance your rigging capabilities or a contractor in need of a reliable rigging system, the GRCS is a solid investment that guarantees performance and durability.

Specifications:

Weight: 40lbs (approximately)

GRCS: Good Rigging Control System Features:

• All-in-one package: Easy setup, serious lifting power, and tangle-free operation. Includes GRCS Base, Strapping, and Bar, Interchangeable Lowering Bollard, improved winch: a true “arborist” winch with a longer drum

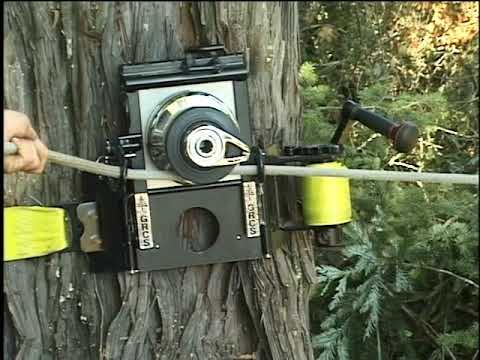

• Compact System: Setup your workstation anywhere utilizing a tree mount system. The GRCS attaches firmly to any compatible tree trunk via steel mounting plate.

• Versatility: Compatible with both a Harken rope winch and aluminum rope brake.

• Able to handle very heavy loads thanks to it’s 3,000lb deadlift rating.

• Reliable Design: Hinged side plates and 9 rubber feet provide solid mounting on a broad range of stem and pole diameters.

• Patented fairlead system positions the rope on the drum to eliminate crossovers during raising, lowering and side pulling operations.

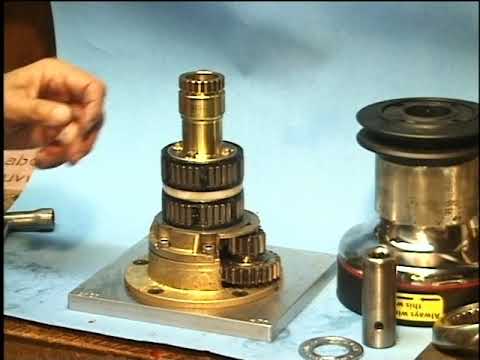

• The Harken 44:1 winch features a self-tailing gearing system with two settings for speed. The self tailer automatically holds the tension as a load is being raised so lifting or pulling can be accomplished by a single operator.

• The ultimate lowering tool: The winch accepts lowering line from 1/2″ to 3/4″ in diameter. The aluminum rope brake achieves controlled lowering thanks to a 4″ diameter tube welded to a base plate, with a cavity large enough for an ice pack to be placed inside, to prevent rope glazing during very extreme lowering situations.

• Able to take 5 full wraps with a 3/4″ rope

• Optional Accessories (which can be purchased from the drop-down menu): GRCS Drill Driver, GRCS Truck Mount, GRCS Visor Plate (for heavy duty removals)

Additional information

Weight 50 kg
Dimensions 1 × 1 × 1 cm
