Description

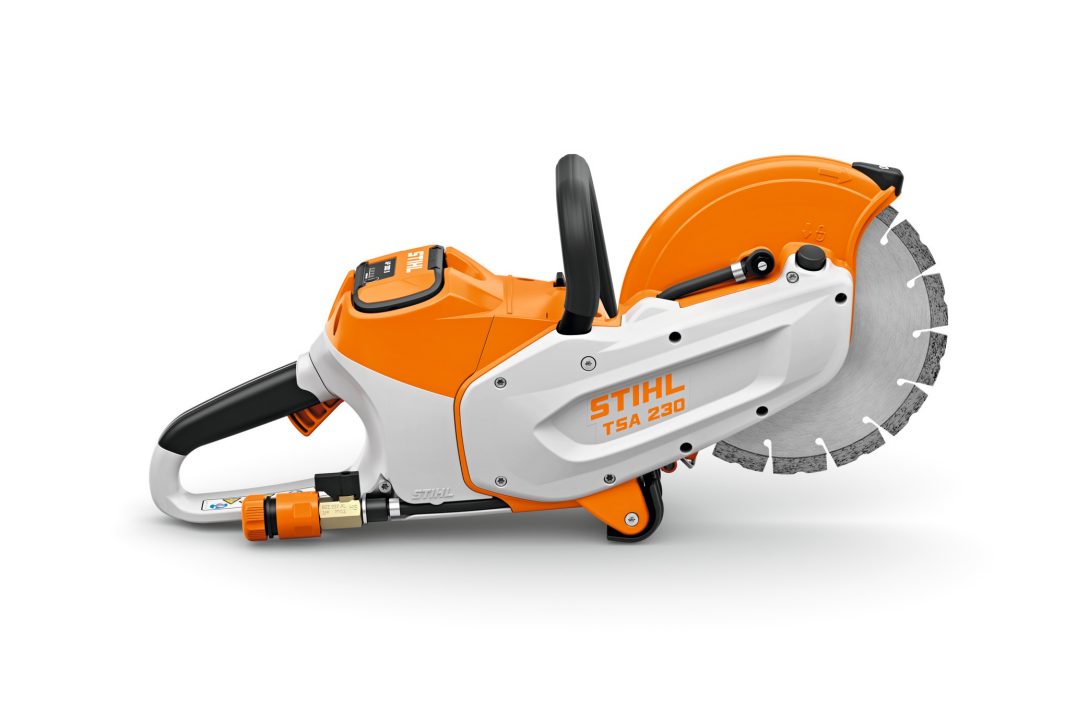

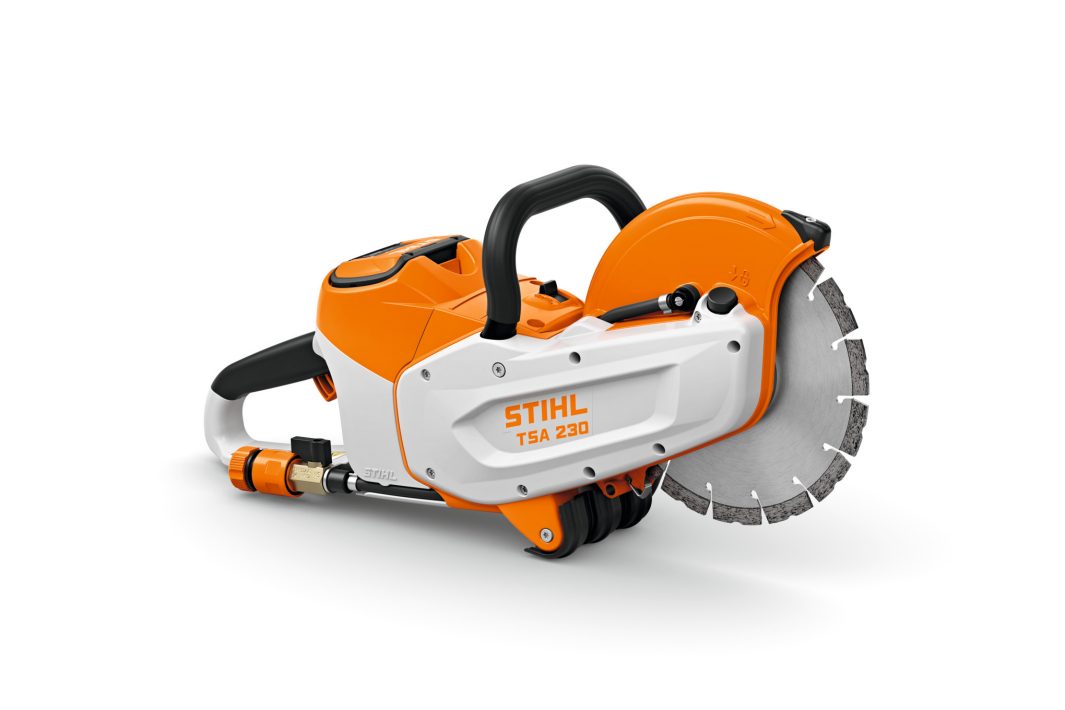

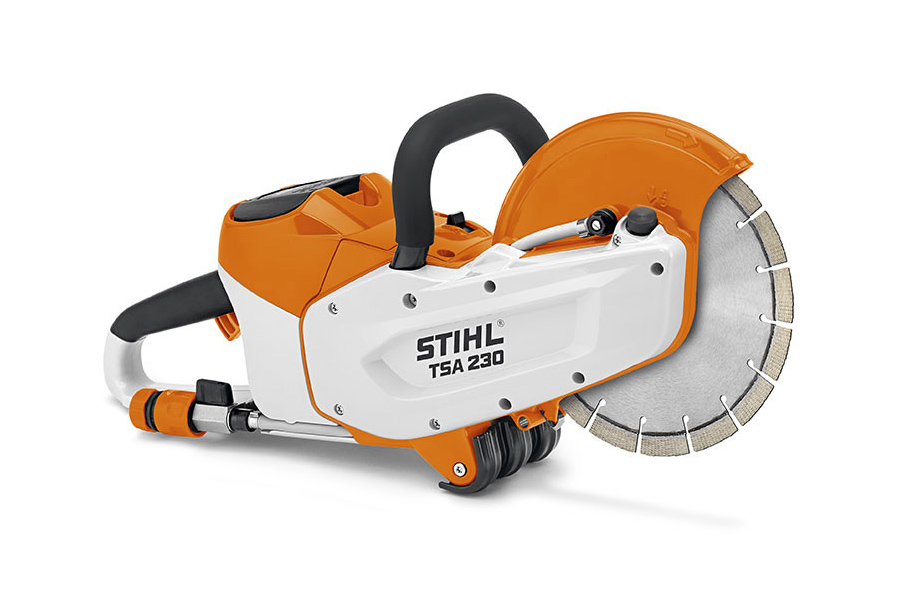

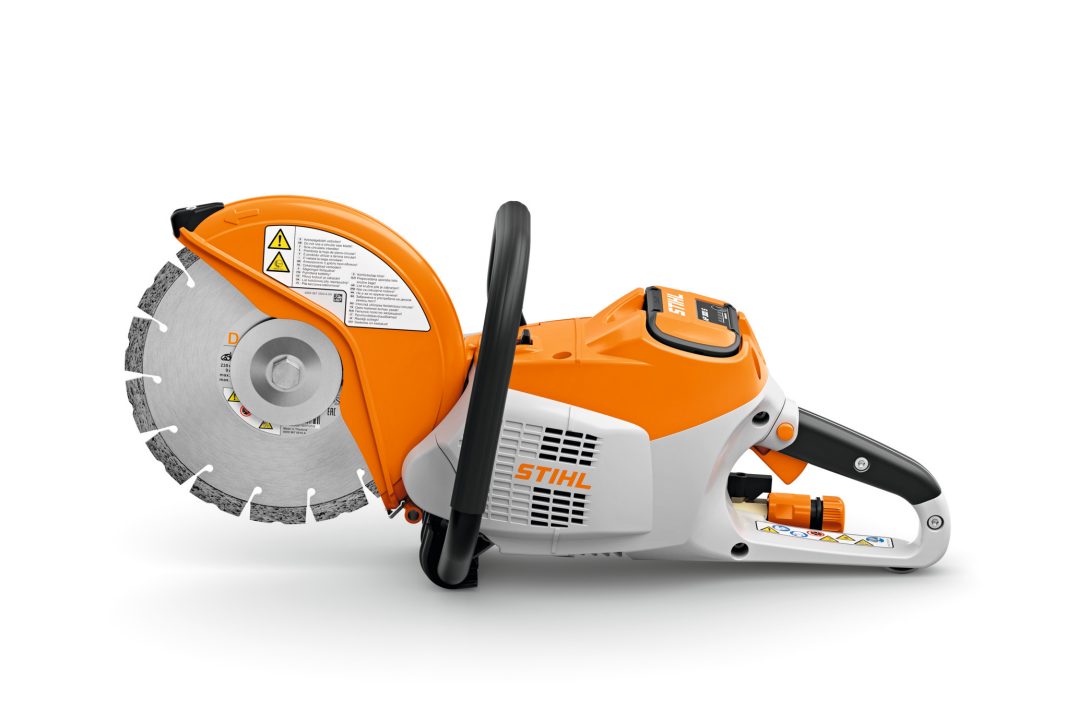

STIHL is proud to introduce the world’s first 9” cordless cut off machine.
Cutting neatly and swiftly up to 70mm deep, the TSA 230 is ideal for cutting roofing tiles, bricks, metal and paving blocks.
It is particularly light at only 3.9 kg (without battery). Emission-free cordless technology benefits both the operator and environment whilst allowing the tool to be operated indoors and outdoors. The water connection and vacuum accessories ensure effective dust control when cutting.
Supplied with an abrasive wheel for cutting steel.
|
Cordless technology
|
36V Lithium-Ion
|
|
Recommended battery
|
AP 300
|
|
Battery life time AP 200 min 1)
|
up to 14
|
|
Battery life time AP 300 min 1)
|
up to 18
|
|
Battery life time AR 2000 min 1)
|
up to 75
|
|
Battery life time AR 3000 min 1)
|
up to 95
|
|
Maximum cutting depth mm
|
70
|
|
Cutting wheel mm/in
|
230/9
|
|
Weight kg 2)
|
3.9
|
|
Vibration levels left/right m/s² 3)
|
3.5/3.5
|
|
Sound pressure level dB(A) 4)
|
103
|
|
Sound power level dB(A) 4)
|
114
|
|
Weight kg
|
3.9
|
|
Rated voltage V
|
36
|
1) Battery life times are approximate and may vary depending on application
2) Without battery and cutting wheel
3) (K) factor according to Dir. 2006/42/EC = 2m/s²
4) Power factor according to DIR2006/42/EC=2.5(dB(A))
