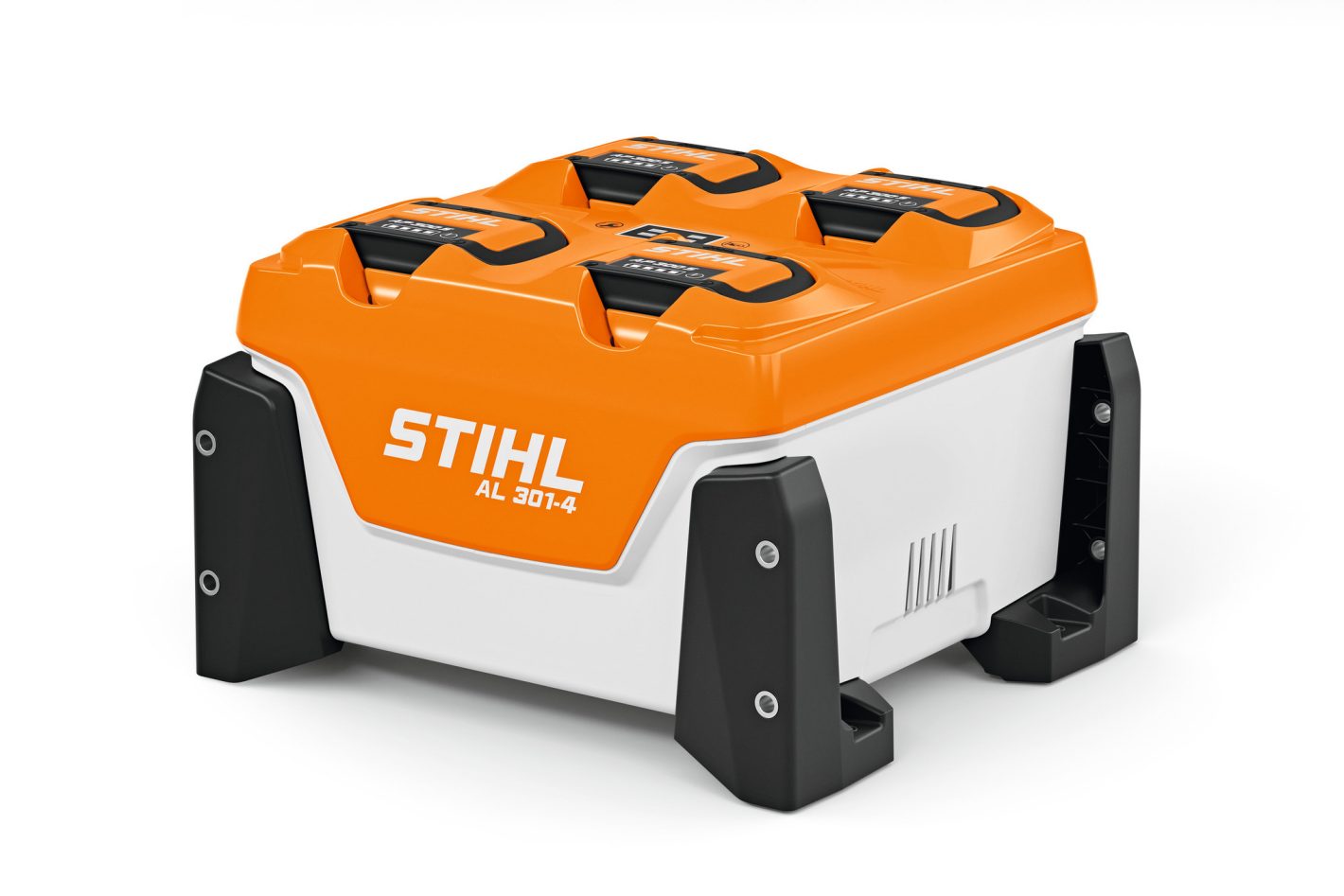

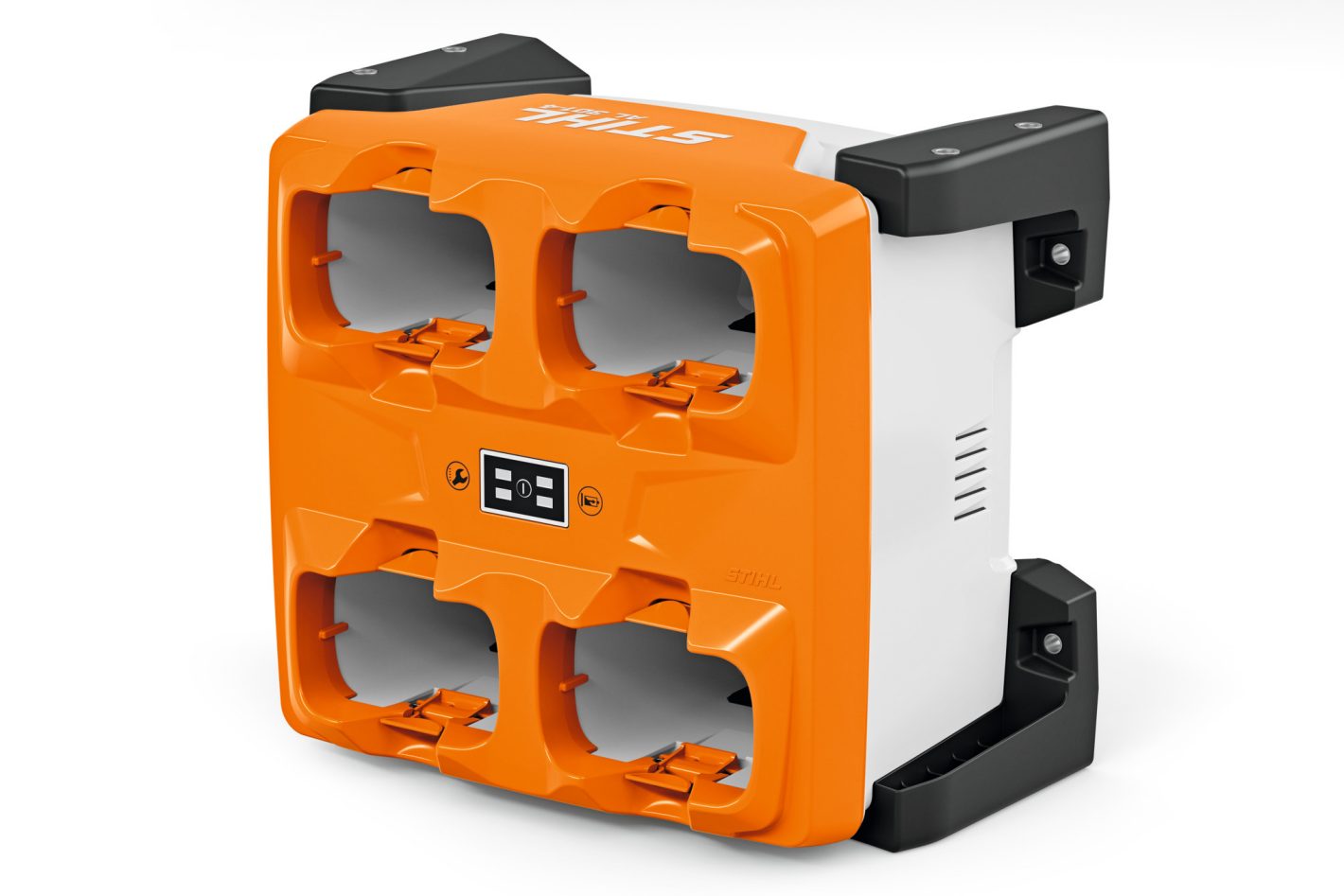

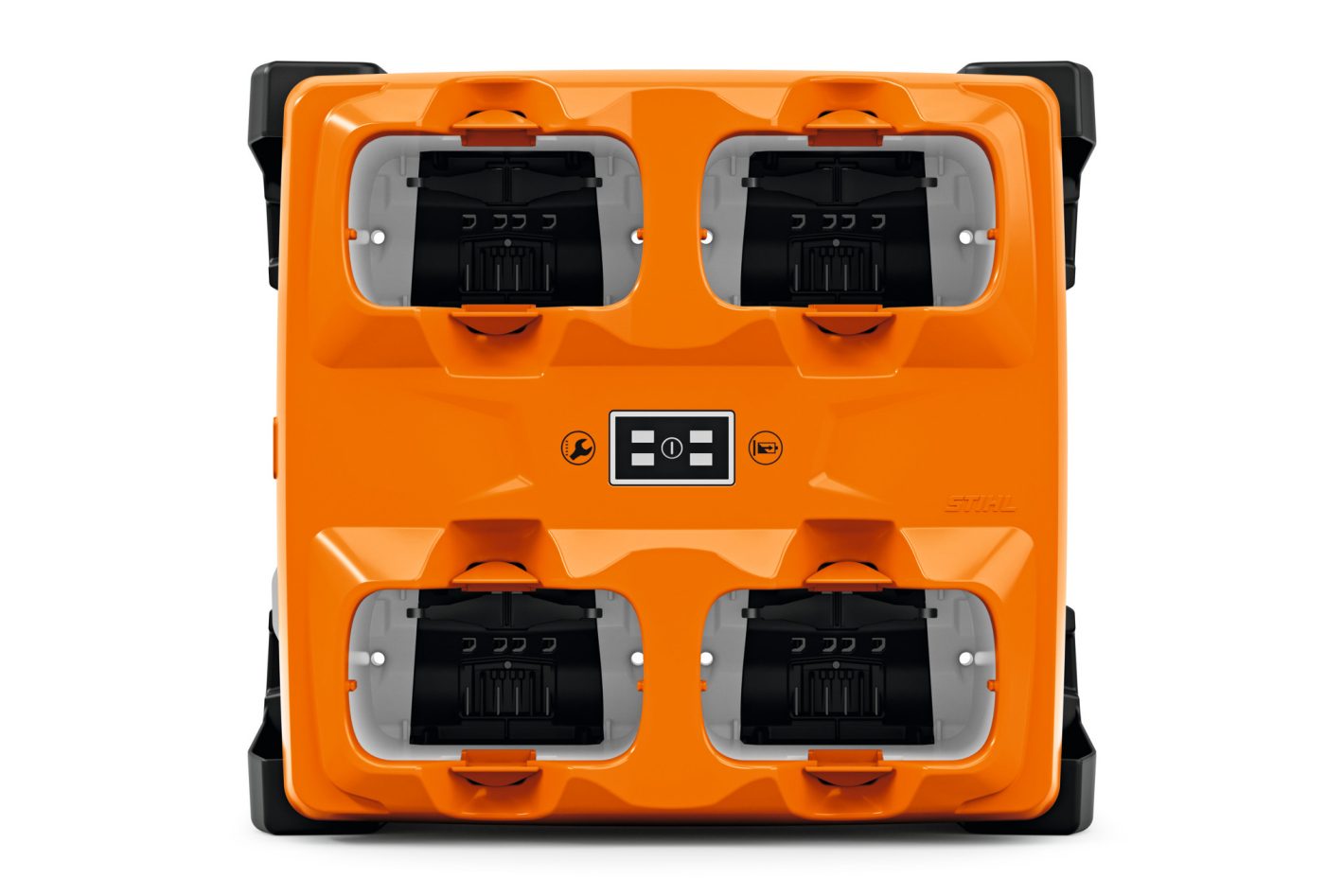

230 V. Multiple battery charger for sequential charging of up to four AP batteries or AR L batteries with an AR L connecting cable and AP adapter.Cannot be used with AK batteries.Can be secured either to the wall or on a shelf, or permanently installed in a vehicle. Energy supply via an external feed. With operating mode indicator via LED and active battery cooling. AR L connecting cable and AP adapter for charging AR L backpack batteries not included in the scope of delivery.
AP System charge times:
AP 100 battery in 45 minutes
AP 200 battery in 55 minutes
AP 300 battery in 75 minutes
AP 300 S battery in 90 minutes
AP 500 S battery in 90 minutes
AR 2000 L battery in 290 minutes
AP 3000 L battery in 430 minutes
Additional information
Weight
4.4 kg
Dimensions
1 × 1 × 1 cm
Back Pack
AR 3000 L – Battery Only, AR 3000 L – Set
Brand
Stihl
Technical data
Value
Rated voltage V
220-240
Rated current A
2.3
Charging current A
6.5
Weight kg
4.4
Weight kg 1)
4.4
Power output kW
0.3
Protection class
II
1) 0
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
