FTC Tree Mini Cylinder HR 2.0 Friction Device


, , , ,

The MINI-CYLINDRE 2.0 is a friction device used in tree care to hold and lower loads during felling and branch or log removal.

▼ More Info...

£444.84 Ex VAT

£533.81 Inc VAT

Stock: Not Available

Out of stock

Notify me when item is back in stock.

SKU:   FRIC-FTC-0014
MPN: FTC/MINICYL-HR2.1
Compare
Add to Wish List

Description

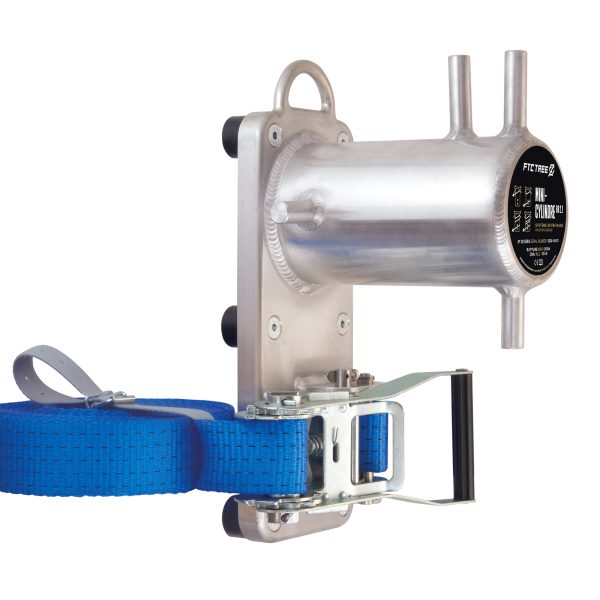

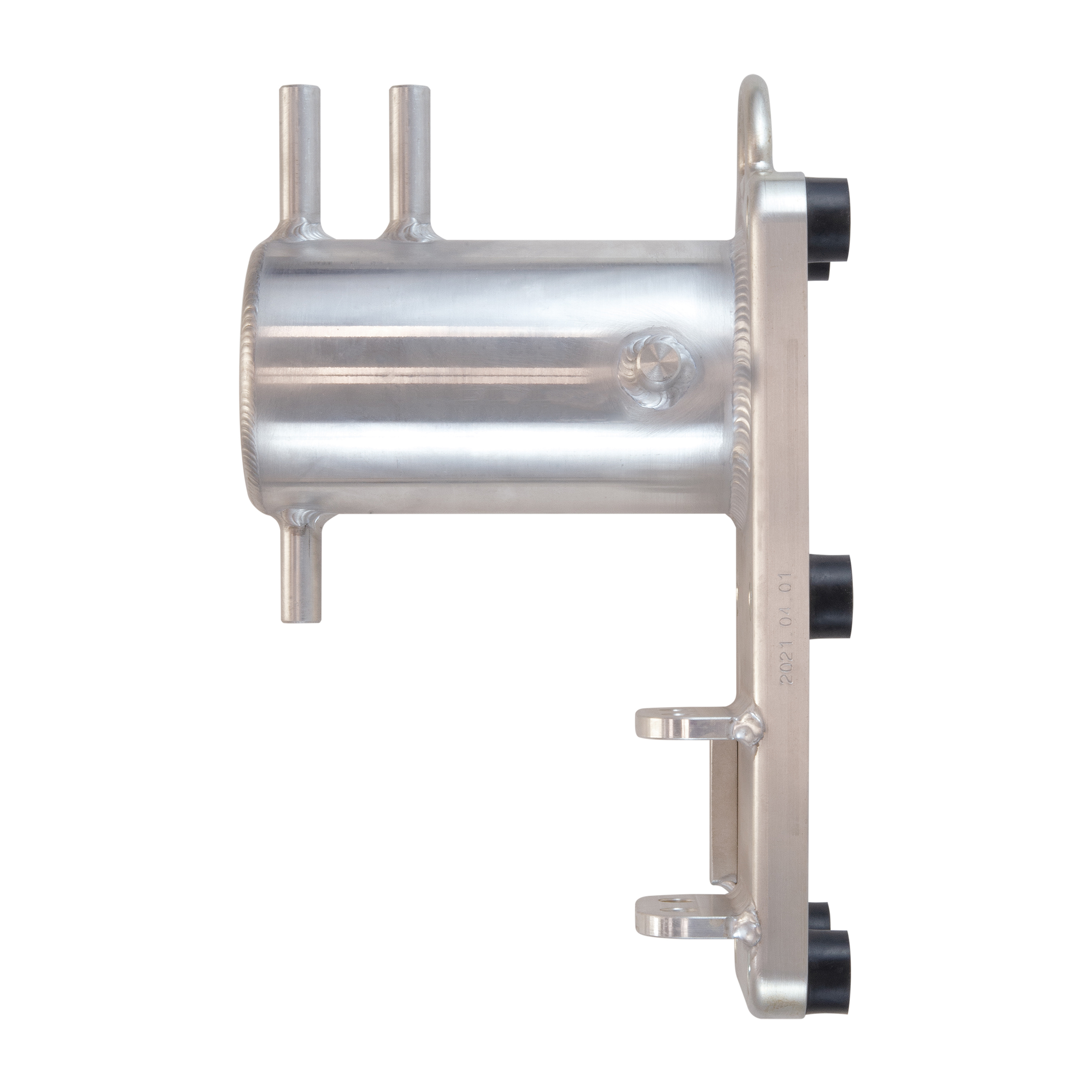

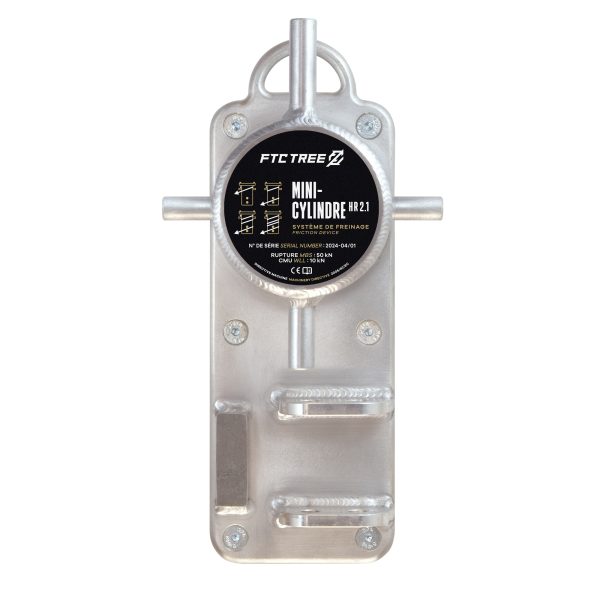

Made entirely of aluminium, it won’t heat up and won’t burn your ropes. The round upper ring enables reeving, and two fairleads at the end of the cylinder prevents losing wraps and overlapping of the rope. A third fairlead under the cylinder enable a finer, more precise rigging.

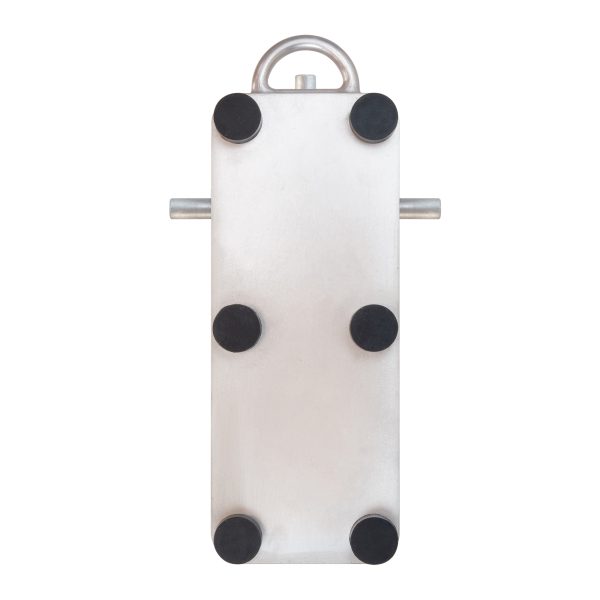

6 rubber silent blocks protect the tree and ensure stability of the cylinder when loaded. The symmetry of the device allows left or right location of the ground crew.

COMPLEMENTARY INFORMATION

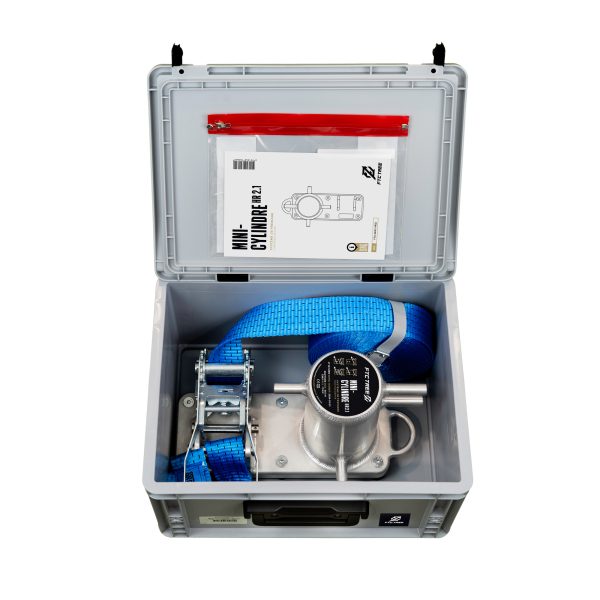

The MINI-CYLINDRE 2.0 is delivered with its strap and its own box for easy transport and storage.

Technical characteristics

Standard: CE 98/37 Machinery Directive

Plate: 340 mm (13.38 in) high (half ring included), 120 mm wide (4.72 in)
Cylinder Ø: 100 mm (3.93 in)

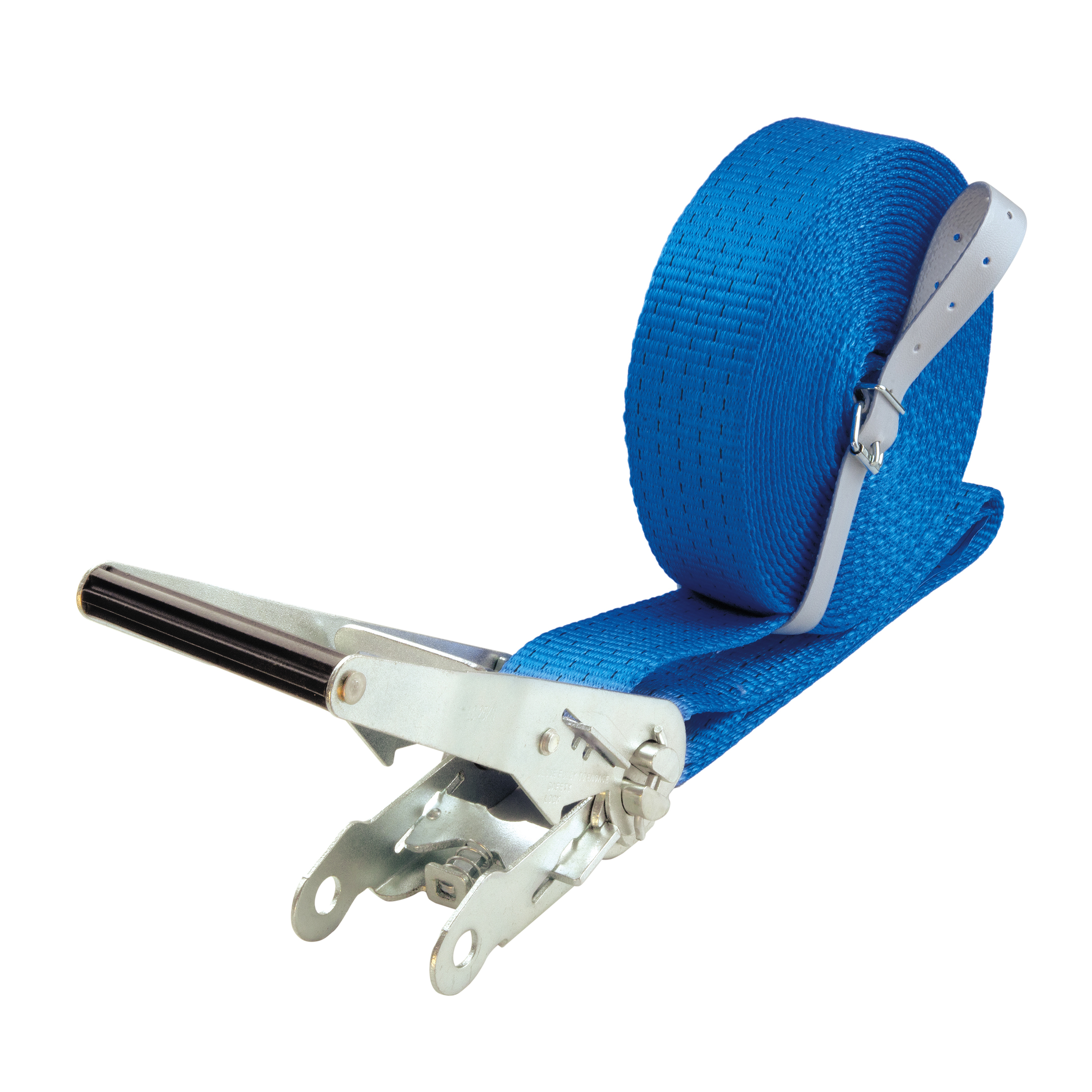

Strap length: 9 m – 29.52 ft (for trees up to 2 m (6.56 ft) in diameter), MBS 7,500 daN
Ratchet: MBS 6,000 daN

Box: 30 cm x 40 cm – 23.5 cm high (11.8 in x 15.74 in – 9.25 in high)

Maximum Ø of rope allowed: 16 mm (0.62 in)

Distortion: 5,000 daN – WLL: 1,000 daN

Weight: 5.9 kg without the box (7.5 kg with) (208 oz without the box, 264 oz with)

Additional information

Weight 6 kg
Dimensions 1 × 1 × 1 cm
Brand

FTC

FTC has been manufacturing aluminium friction devices for 15 years, even though a majority of the devices on the market are made from steel.

The choice to use aluminium was deliberate and strategic:

  • It's a very good heat conductor since its thermal conductivity quickly disperses the heat generated by rope friction through the device and into the air. This dissipation of heat prevents the system from reaching a melting point with your polyester ropes, making them last longer. Steel has difficulty conducting and dissipating heat, so you need to pay much more attention to rope damage when using steel devices.
  • Lighter than steel: aluminium is one-third the weight of stainless steel. Therefore, our friction devices are lightweight. For example, at 5.9 kg, the MINI-CYLINDER is effortless to transport.
  • Resistant: aluminium is a highly resistant material used currently in the automobile and aerospace industries, as well as many other fields. Although its mechanical properties are inferior to steel, they are still excellent once they are well dimensioned. When it reaches its limits, it will deform and then “rip apart”. There will never be a clean break.
  • It is naturally resistant to external aggressive agents: just like stainless steel, the surface of aluminium oxidises to form a very resistant layer much like a protective shield. This shield is very resistant to humidity, abrasion, etc., which makes the device perfect for outdoor use.
  • Aluminium is 100% recyclable. We pay careful attention to the recycling possibilities and lifecycles of our products and look to be the most respectful as we can be to the environment.
  • Now you understand why aluminium, when used correctly, proves to be an excellent ally!
