Description

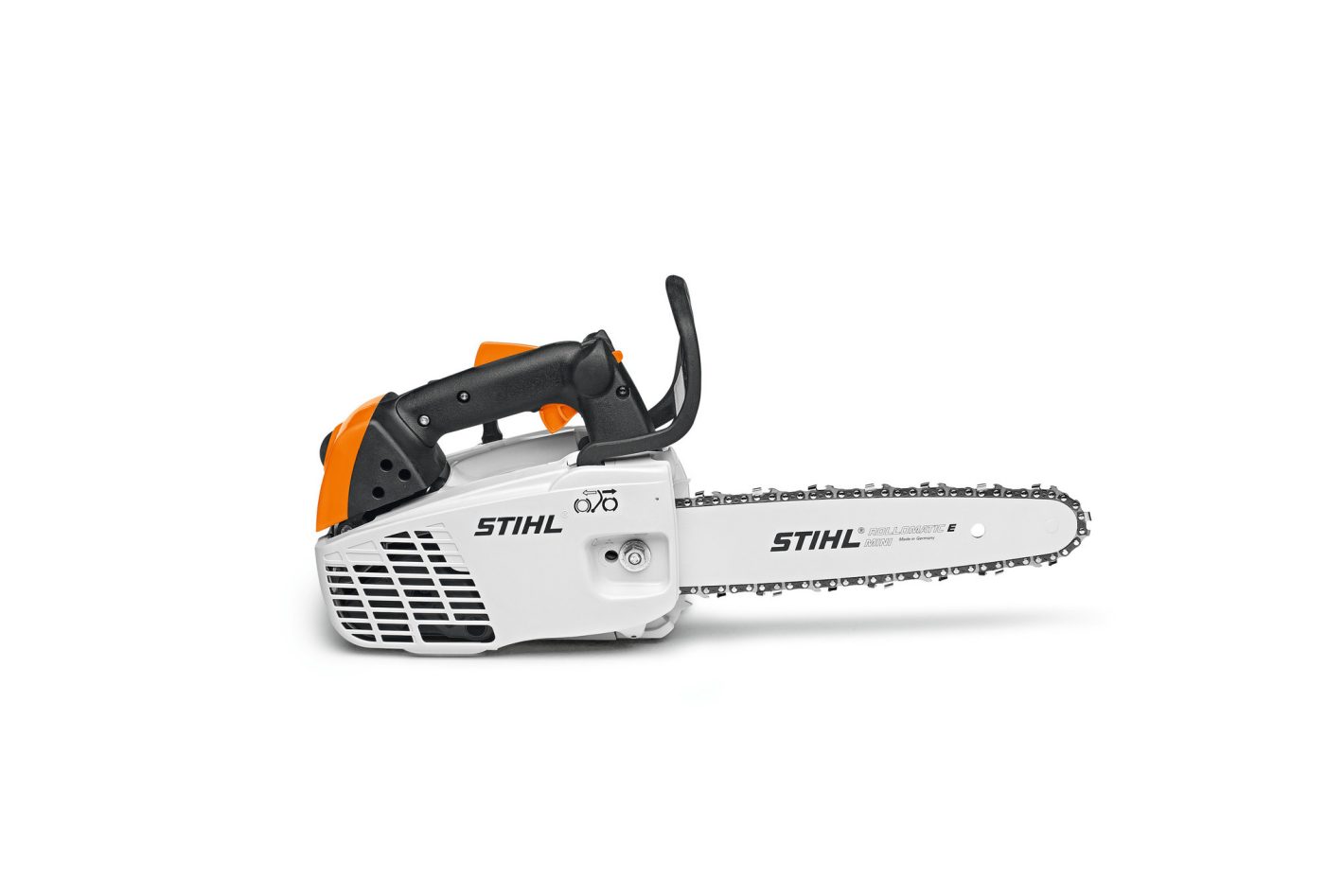

The MS 194 T is a highly capable top handle chainsaw from STIHL. Sitting between the MS 151 TC-E and the MS 201 TC-E, the MS 194 T is a middle ground for those who want a lighter all round machine that is capable of pruning jobs and full removals. With a large 31.8cc 2-MIX engine, this arborist chainsaw boasts 9% more power (1.4kW) and 7% more torque (1.5Nm) than the previous MS 193 TC-E.
It also comes fitted with a ¼ P chain for a quick cut. This chainsaw is well-suited to deadwood removal, reductions and crown lifts as well as taking down medium-sized trees.
|
Displacement cm³
|
31.8
|
|
Power output kW/bhp
|
1.4/1.9
|
|
Weight kg 1)
|
3.3
|
|
Power-to-weight ratio kg/kW
|
2.4
|
|
System weight kg 2)
|
3.67 / 3.73
|
|
CO2 g/kWh
|
896
|
|
Sound pressure level dB(A) 3)
|
100
|
|
Sound power level dB(A) 3)
|
112
|
|
Vibration values left/right m/s² 4)
|
3.6/3.6
|
|
Tank volume l
|
0.27
|
|
Bumper spike
|
Polymer spike
|
|
Sprocket - number of teeth
|
8 Z
|
|
Cylinder
|
4 channel / chrome
|
|
Oil pump
|
Non-adjustable ,Side-chain tension
|
|
Filter
|
Standard filter
|
|
Sprocket
|
Sprocket profile,Sprocket profile
|
|
Chain tensioning
|
Side-chain tension,Side-chain tension
|
|
Anti vibration system
|
AV system
|
|
Filler cap
|
Tool-free fuel cap
|
|
Chain pitch
|
1/4"P
|
|
Starting system
|
Recoilless ignition / Manual fuel pump / ErgoStart / Standard starter handle
|
|
EPA Certified fuel consumption l/h
|
0.632
|
|
Oil tank volume cm3
|
220
|
1) Without fuel, without bar and chain
2 Unfueled, with guide bar and saw chain
3 K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4 K-factor according to DIR 2006/42/EC = 2m / s ²
