Description
The DMM Gyro pulley range are strong swing cheek pulleys with high-efficiency roller bearings that can be used for all of your pulley requirements.
Precision-engineered in our factory in Wales using hot forging and CNC techniques to create textile-friendly, efficient and high-performance pulleys.
Big bore axle technology provides increased resistance to side plate leverage.
The PM model features prusik minding side plates that mean it can be used in efficient progress capture hauling systems.
The Gyro Twin features prusik minding side plates and a load bearing becket and excels in mechanical advantage set ups.
Compatible with up to 13mm ropes.
Features

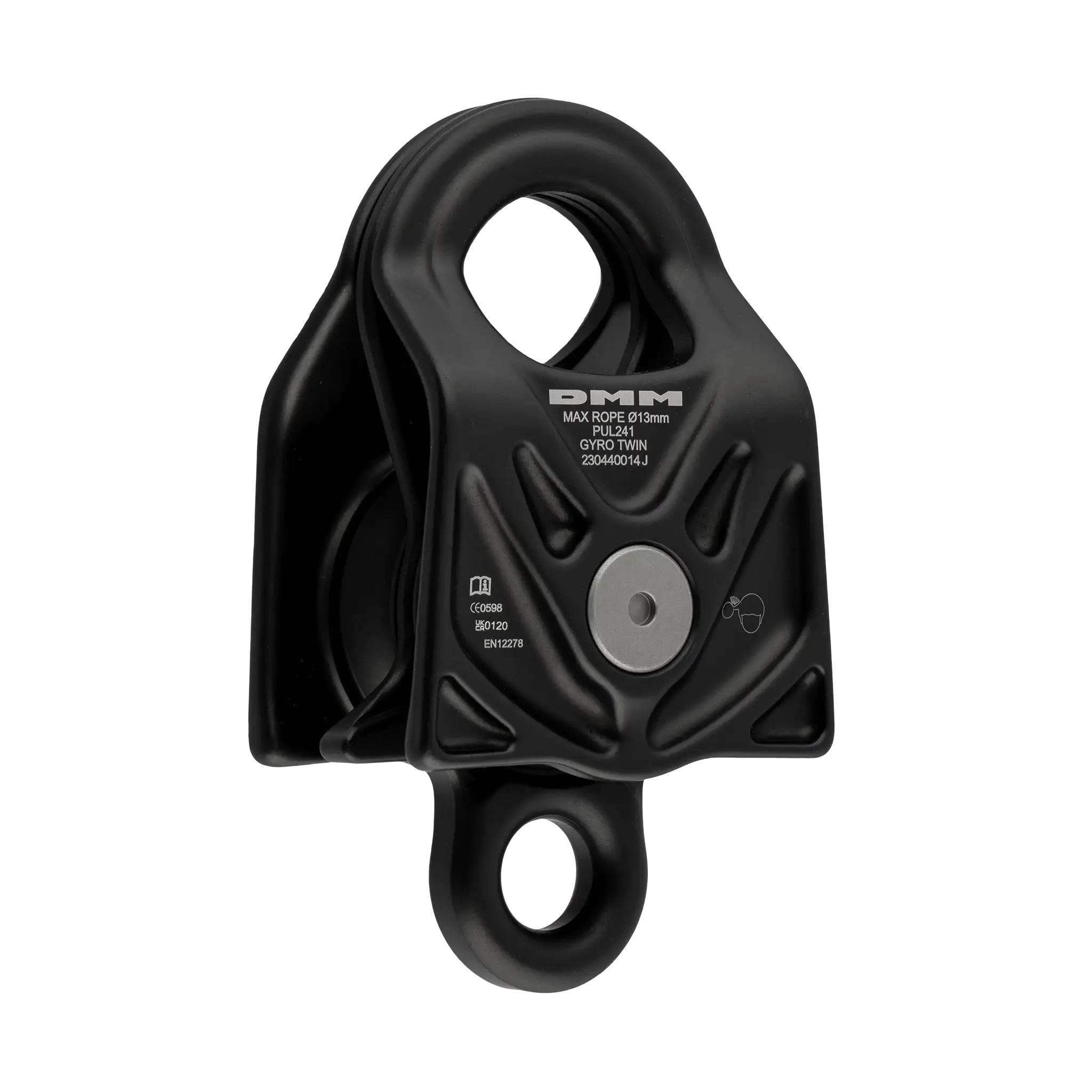

The Gyro Twin pulley features a load-bearing becket that enhances attachment options, providing greater versatility in rigging applications. Its strength-rated design ensures reliability in demanding environments.
Equipped with prusik minding side plates, the Gyro Twin allows for effective progress capture in hauling systems, preventing prusiks from jamming the sheave and enabling precise control over loads.
The compact design of the Gyro Twin minimizes system height, making it ideal for use in confined spaces while ensuring efficient and manageable rigging.
Roller bearings incorporated into the pulley enhance efficiency by reducing friction, facilitating smoother movement and improved load control.
The angled fairlead flares of the side plates decrease the bend radius, further increasing efficiency when ropes run over them.
Constructed with a hot forged body, the Gyro Twin minimizes wear on ropes by reducing sharp edges, thereby prolonging the lifespan of the equipment.
MBS 50kN
WLL 10kN
Dimensions 125 x 70 x 52mm
Weight 346g
Max Rope Diameter 13mm
