Description
The ECHO CS‑501SX petrol chainsaw features a 50.2 cm³ engine and 18″ guide bar in a 4.7 kg chassis. With anti-icing, tool-free filter access, and low-vibration design, it’s ideal for forestry and professional cutting work.

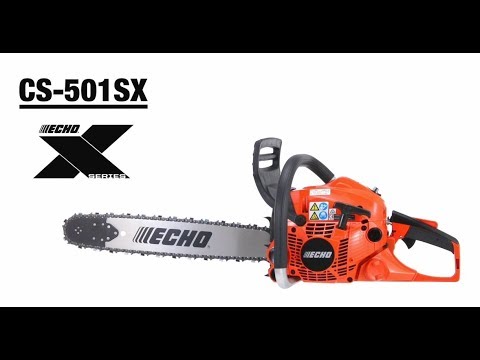

ECHO CS‑501SX Rear‑Handle Petrol Chainsaw – 18″ (45 cm) Bar
The ECHO CS‑501SX petrol chainsaw delivers professional-grade performance in an ultra-light frame. With a 50.2 cm³ engine and 18″ bar, it balances cutting power, weight, and reliability—perfect for limbing, felling, and heavy-duty forestry work.
Powerful Performance, Lightweight Frame
The 50.2 cm³ two-stroke engine generates around 2.57 kW (≈ 3.5 hp), yet the saw weighs just 4.7 kg (dry). This impressive power-to-weight ratio reduces fatigue during prolonged use and increases efficiency in professional settings.
Optimised for All-Weather Use
Designed with an anti-icing system and a decompression start-assist, the CS‑501SX handles low-temperature starts with ease. Its ergonomic frame includes a magnesium crankcase, slim profile, and aluminium front handle with rubber grip for better comfort and control.
Built for Professionals
This model includes side-access chain tensioning, tool-free air filter access, and retained bar nuts to prevent part loss. A see-through fuel tank allows quick visual checks, and the large, glove-friendly filler openings make refuelling easy.
Comfort and Safety
A three-point anti-vibration system minimises strain, while the inertia-activated chain brake offers added protection. With low emissions, smooth handling, and rugged construction, it’s a true workhorse for arborists and forestry pros.
Key Features
- 50.2 cm³ engine producing ~2.57 kW (≈ 3.5 hp)
- Dry weight: 4.7 kg (excluding bar and chain)
- Supplied with 18″ (45 cm) guide bar
- 0.325″ chain pitch, 0.058″ gauge
- Decompression start-assist and anti-icing system
- Tool-free air filter access and side chain tensioner
- Drop prevention nuts and see-through fuel tank
- Fuel capacity: 0.5 L; oil tank: 280 ml
- Vibration levels: 5.5 m/s² (front), 5.8 m/s² (rear)
- Sound pressure: ~105.5 dB(A); sound power: ~113 dB(A)
- CO₂ emissions: ~742 g/kWh
