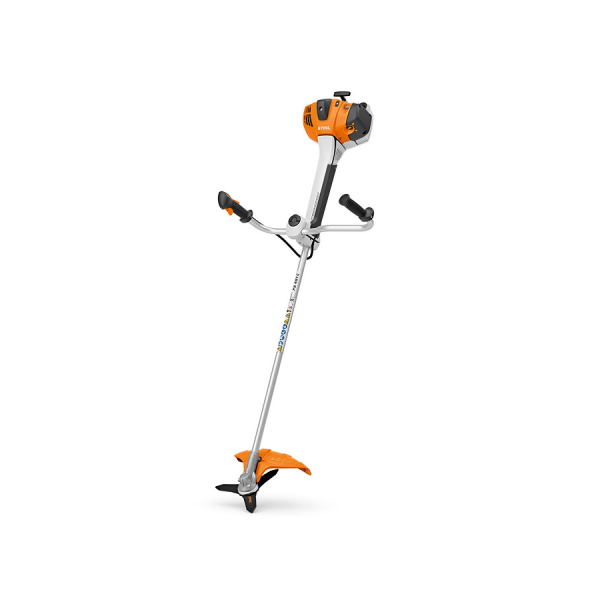

Powerful 2.4 kW brush cutter for professional landscape maintenance applications. Large cutting diameter and optimised gear ratio.
Improved mowing performance. Technically enhanced gearbox includes updates to the sealing system, main bearing and lubricant circulation – meaning increased robustness and a long service life.
New deflector design makes storage easier and increases visibility of the cutting attachment whilst working.
Reduced vibration levels during partial load operation. With STIHL 4-point anti-vibration system, STIHL ErgoStart, multi-function handle, two-hand handle, tool-free handle adjustment, 2-MIX motor, STIHL M-Tronic, simple start logic, stop button, with ADVANCE PLUS forestry harness. High mowing performance thanks to the large mowing circle. Low vibration level.
Easy to start. Low fuel consumption. Ideal for large-scale clearing of tough grass, brush, small trees and bushes.
Additional information
Weight
28 kg
Dimensions
1 × 1 × 1 cm
Brand
Stihl
Technical data
Technical data
Value
Standard cutting tool
BrushCut 300-3
Capacity cm3
51.6
Performance kW
2.4
Performance PS
3.3
CO² g/kWh
860
Weight kg 1)
9.3
Sound pressure level with mowing head dB(A) 2)
101
Sound pressure level with metal tool dB(A) 2)
101
Vibration value, left with mowing head m/s2 3)
3.2
Vibration value, right with metal tool m/s2 3)
2.8
Vibration value, left with metal tool m/s2 3)
3.4
Vibration value, right with mowing head m/s2 3)
2.8
Total length cm 4)
180
Tank volume l
0.99
Power output kW/bhp
2.4/3.3
1) Without fuel, cutting tool and without protection 2) K-factor according to DIR 2006/42/EC = 2.5 dB (A) 3) K-factor according to DIR 2006/42/EC = 2m / s ² 4) Without cutting tool
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
STIHL M-Tronic
This fully electronic engine management system adjusts ignition timing and fuel metering in all operating modes. It also takes external conditions such as temperature, altitude and fuel quality into account. It ensures consistent engine performance, a constant maximum speed and superb acceleration. M-Tronic makes manual carburettor adjustments unnecessary. Thanks to electronic cold/warm start recognition, now there is only one start position on the combi-lever. The engine starts after fewer pulls and with no change of position, and can immediately accelerate up to speed - even after a cold start. M-Tronic also remembers the settings from the last time the tool was used. So when external conditions are the same, optimal engine performance is available every time you start up again.
STIHL ErgoStart
STIHL ErgoStart cuts the effort required to start the tool by half, while the starter cord can be pulled at just one third of the normal force. A coil spring between the starter cord and the crankshaft smoothes out force peaks, making them virtually undetectable through the cord itself.
Reduced-emission engine technology
2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.
Bike handle
When used in conjunction with a harness, the bike handle enables a smooth mowing action. The bike handle allows the machine to be easily guided, making it ideal for working on large areas and thus reducing fatigue.
Multi-function handle
The one-hand multi-function handle means you can control your device easily and reliably with one hand. Since all the relevant control elements are integrated in it, the handle is suitable for both right and left-handers.
