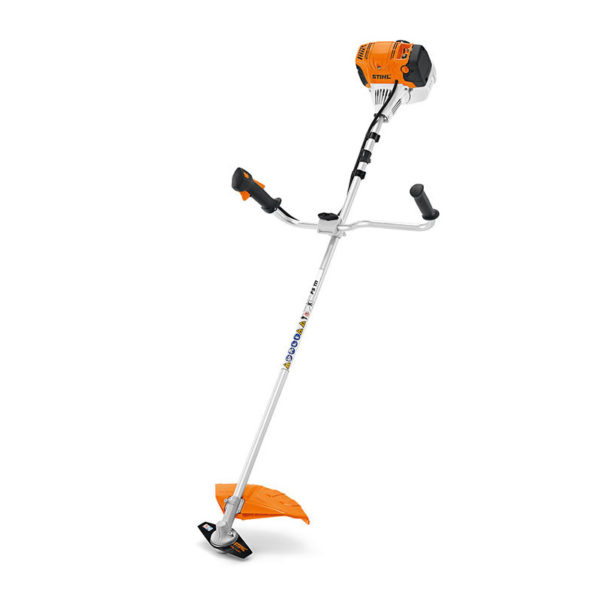

The ideal landscaping tool for cutting large areas of tough grass. For working on large areas of tough grass. Simplified starting, bike handle, control handle with stop button, 4-MIX® engine with larger tank for increased cutting time between filling, rigid drive shaft, Supplied with ADVANCE Universal double shoulder harness, metal grass blade and AutoCut mowing head.
The ideal landscaping tool for cutting large areas of tough grass. For working on large areas of tough grass. Simplified starting, bike handle, control handle with stop button, 4-MIX® engine with larger tank for increased cutting time between filling, rigid drive shaft, Supplied with ADVANCE Universal double shoulder harness, metal grass blade and AutoCut mowing head.
Extremely ergonomic, comfortable and light. For strength-saving mowing and shredding. Chest belt and tool bag also available. Suitable for FS 50 - FS 550.
Standard Features
STIHL 4-MIX? engine
You can always rely on STIHL to keep setting new benchmarks this time with 4-stroke mixed lubrication technology. The STIHL 4-MIX? engine, which runs on a fuel-oil mix just like a 2-stroke, offers the benefits without the compromises of 4-stroke power. STIHL 4-MIX? engine technology provides fast acceleration, more power, added torque, lower noise, reduced emissions and increased fuel efficiency to complete jobs quickly, quietly and more easily.
Decompression system
The decompression valve allows some of the compression pressure in the cylinder to escape, so less force on the starter rope is needed.
Manual fuel pump (Purger)
A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.
Bike handle
When used in conjunction with a harness, the bike handle enables a smooth mowing action. The bike handle allows the machine to be easily guided, making it ideal for working on large areas and thus reducing fatigue.
Anti-vibration system
Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine's engine are dampened which significantly reduces vibrations at the handles.
Multi-function control handle
Easy, comfortable thumb-operated control means the operator's hand never leaves the handle.
Tool free handle adjustment
The central wing nut enables easy adjustment without the use of tools. For transportation and space-saving storage, the handle can be rotated by 90?.
Stop switch
The multi-function control handle features a stop switch which automatically reverts back to the start position for a quicker, simple restart.
CO2 g/kWh
836
Displacement cm3
31.4
Power output hp
1.4
Sound pressure level with plastic tool dB(A) 1)
96
Sound pressure level with metal tool dB(A) 1)
95
Performance kW
1.05
Sound power level dB(A) 1)
108
Sound power level with metal tool dB(A) 1)
108
Vibration value, right with metal tool m/s2 2)
4.4
Vibration value, left with metal tool m/s2 2)
5
Weight kg 3)
5.8
Vibration value, right with plastic tool m/s2 2)
4.2
Tank volume l
0.71
Vibration value, left with plastic tool m/s2 2)
5.3
Total length cm 4)
180
Cutting diameter mm
420
Standard cutting tool
AutoCut C 25-2, GSB 230-4
1) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
2) K-factor according to DIR 2006/42/EC = 2m / s ²
3) Without fuel, cutting tool and without protection
4) Without cutting tool
