Description

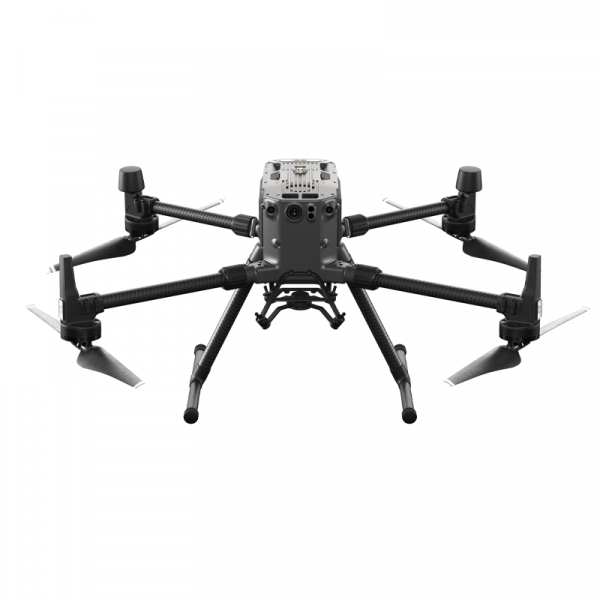

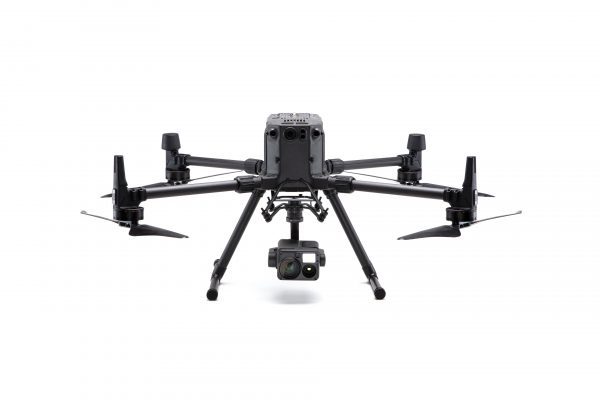

DJI Matrice 300 RTK is a machine that has promise for many applications. DJI’s best obstacle avoidance and aerial awareness tools are included in this platform, making it one of the safest machines in the sky. RTK GPS capability, along with Airsense ADS-B tech and a bunch of Smart tools, ensure the best possible accuracy and safety for your inspection needs. For example, Waypoints 2.0 can manage up to 65,535 points, so you can pre-program a lengthy mission.
The new Ocusync Enterprise offers range up to 15KM, that’s almost 10 miles. It also has triple-channel 1080p video transmission. That’s one signal to the remote, one to a dedicated recorder and one to flight command or the news truck, or whatever receiver you need.
- 55 min Max Flight Time, 23 m/s Max Flight Speed
- 15 km Transmission Range, 1080p Triple-channel Video
- Supports up to 3 payloads, 2.7 kg maximum payload capacity
- Automate inspections with Live Mission Recording and AI Spot Check
- Advanced algorithms enable PinPoint and Smart Track to obtain dynamic location information for subjects in view
- 6 Directional Sensing and Positioning system enhances flight safety
- Password-protected access to aircraft and data
- AirSense ADS-B Receiver warns of nearby airplanes and helicopters
- Secure data transmission with AES-256 encryption
- DJI Pilot with Local Data Mode protects drone data
- Operating Temperature: -20°C to 50°C
Dimensions
Unfolded, propellers excluded, 810×670×430 mm (L×W×H)

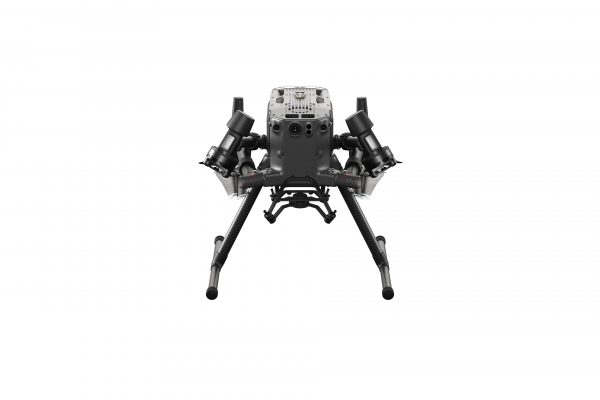

Folded, propellers included, 430×420×430 mm (L×W×H)
Diagonal Wheelbase
895 mm
Weight (with single downward gimbal)
Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries)
Max Payload
2.7 kg
Max Takeoff Weight
9 kg
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
EIRP
2.4000-2.4835 GHz:
29.5 dBm (FCC); 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
28.5 dBm (SRRC)
Hovering Accuracy (P-mode with GPS)
Vertical:
±0.1 m (Vision System enabled)
±0.5 m (GPS enabled)
±0.1 m (RTK enabled)
Horizontal:
±0.3 m (Vision System enabled)
±1.5 m (GPS enabled)
±0.1 m (RTK enabled)
RTK Positioning Accuracy
When RTK enabled and fixed:
1 cm+1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical)
Max Angular Velocity
Pitch: 300°/s, Yaw: 100°/s
Max Pitch Angle
30° (P-mode, Forward Vision System enabled: 25°)
Max Ascent Speed
S mode: 6 m/s
P mode:5 m/s
Max Descent Speed (vertical)
S mode: 5 m/s
P mode:4 m/s
Max Descent Speed (tilt)
S Mode: 7 m/s
Max Speed
S mode: 23 m/s
P mode:17 m/s
Service Ceiling Above Sea Level
5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)
Max Wind Resistance
15 m/s
Max Flight Time
55 min
Supported DJI Gimbals
Zenmuse XT2/XT S/Z30/H20/H20T
Supported Gimbal Configurations
Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals
Ingress Protection Rating
IP45
GNSS
GPS+GLONASS+BeiDou+Galileo
Operating Temperature
-20°C to 50°C (-4°F to 122° F)
Remote Controller
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
Max Transmitting Distance (unobstructed, free of interference)
NCC/FCC: 15 km
CE/MIC: 8 km
SRRC: 8 km
EIRP
2.4000-2.4835 GHz:
29.5 dBm (FCC) 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
20.5 dBm (SRRC)
External battery
Name: WB37 Intelligent Battery
Capacity: 4920 mAh
Voltage: 7.6V
Type: LiPo
Energy: 37.39Wh
Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)
Built-in battery
Type: 18650 lithium ion battery (5000 mAh @ 7.2 V)
Charging: Use a USB charger with specification of 12V / 2A
Rated power: 17 W
Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)
Battery Life
Built-in battery: Approx. 2.5h
Built-in battery+External battery: Approx. 4.5h
USB Power Supply
5 V / 1.5 A
Operating Temperature
-20°C to 40°C (-4 °F to 104 °F)
Vision System
Obstacle Sensing Range
Forward/Backward/Left/Right: 0.7-40m
Upward/Downward: 0.6-30m
FOV
Forward/Backward/Downward: 65° (H), 50° (V)
Left/Right/Upward: 75°(H), 60°(V)
Operating Environment
Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared ToF Sensing System
Obstacle Sensing Range
0.1-8m
FOV
30° (±15°)
Operating Environment
Large, diffuse and reflective obstacles (reflectivity >10%)
Top and bottom auxiliary light
Effective lighting distance
5 m
FPV Camera
Resolution
960p
FOV
145°
Frame rate
30 fps
Intelligent Flight Battery
Name
TB60
Capacity
5935 mAh
Voltage
52.8 V
Battery Type
LiPo 12S
Energy
274 Wh
Net Weight
Approx. 1.35 kg
Operating Temperature
-4°F to 122°F (-20°C to 50°C)
Ideal storage temperature
71.6°F to 86°F (22°C to 30°C)
Charging Temperature
-4°F to 104°F (-20°C to 40°C)
(When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Charging time
Using BS60 Intelligent Battery Station:
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)
BS60 Intelligent Battery Station
Dimensions
501*403*252mm
Net Weight
8.37kg
Maximum Capacity
TB60 Intelligent Flight Battery × 8
WB37 Intelligent Battery × 4
Input
100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
Max. Input Power
1070W
Output Power
100-120 V: 750 W
220-240 V: 992 W
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
